93 Shore A
good
Very good
Outstanding
Tread: High-quality polyurethane elastomer cast via chemical reaction, with a hardness of 93±3 Shore A. Low running noise, low rolling resistance, protects the ground, is highly wear-resistant, has high cut and tear resistance, is non-marking and non-staining, and has excellent adhesion to the wheel hub.
Wheel Hub: Bearing brand can be specified; C&U is the default.
Other characteristics: Resistant to corrosion from various corrosive substances; operating temperature: -30°C to +70°C, short-term up to +90°C; load capacity decreases above +40°C.
| Bearing rubber-coated wheel | Wheel diameter (D) mm |
Wheel width (T2) mm |
Load capacity (kg) |
Ball bearing | Shaft hole diameter (d) mm |
Clamping length (T5) mm |
||||||||||||
| HED 36/13-6200 | 36 | 13 | 45 | 6200 2RS | 10 | 9 | ||||||||||||
| HED 40/20-6200 | 40 | 20 | 50 | 6200 2RS | 10 | 9 | ||||||||||||
| HED 45/20-6202 | 45 | 20 | 80 | 6202 2RS | 15 | 11 | ||||||||||||
| HED 60/20-6203 | 60 | 20 | 90 | 6203 2RS | 17 | 12 | ||||||||||||
| HED 50/15-6301 | 50 | 15 | 75 | 6301 2RS | 12 | 12 | ||||||||||||
| HED 62/15-6004 | 62 | 15 | 100 | 6004 2RS | 20 | 12 | ||||||||||||
| HED 75/20-6204 | 75 | 18 | 120 | 6204 2RS | 20 | 14 | ||||||||||||
| HED 70/20-6205 | 75 | 20 | 150 | 6205 2RS | 25 | 15 | ||||||||||||
| For other sizes, please inquire | ||||||||||||||||||
Standard warranty is 12 months. For confirmed quality issues, we provide free replacement or full refund.
35 years in polyurethane wheel manufacturing, 52 patents, products exported to 40+ countries.
MOQ: Standard products 100 pcs. Samples: Standard products 1-3 pcs. Sample lead time: 30 days.
T/T, L/C, PayPal. New clients: 30% deposit + 70% before shipment.
On-time delivery rate: 98%+. In-stock standard products: 3-7 working days.
Choose polyurethane for heavy load and high frequency. Choose rubber for light load and cost priority.
Standard series: 50kg – 10 tons/wheel, maximum 15m/s.
Full customization available for diameter, width, hardness, color and more.

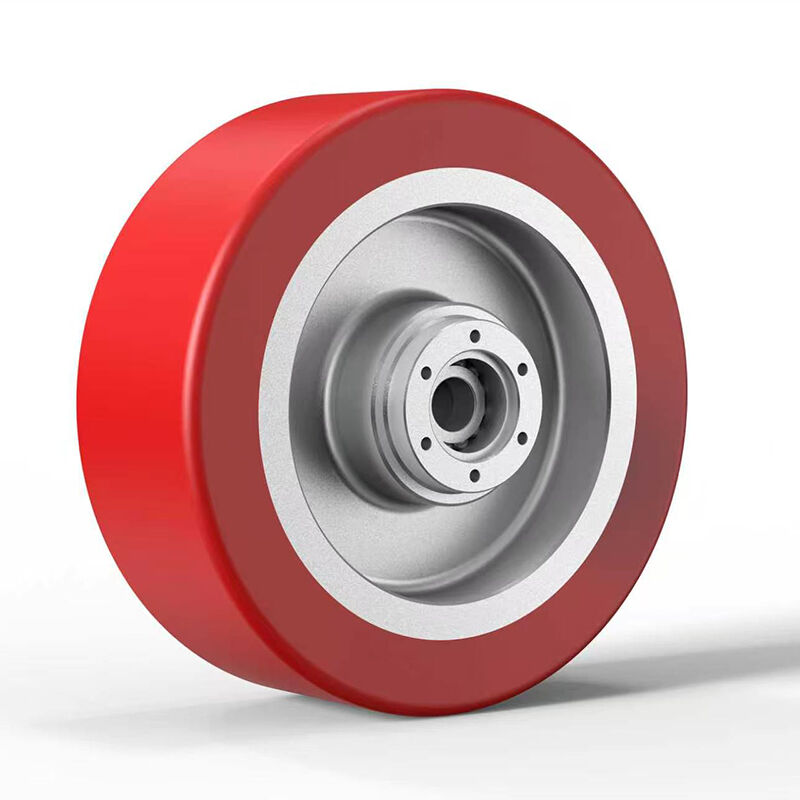

VEH Series-Flanged Polyurethane Drive Wheel

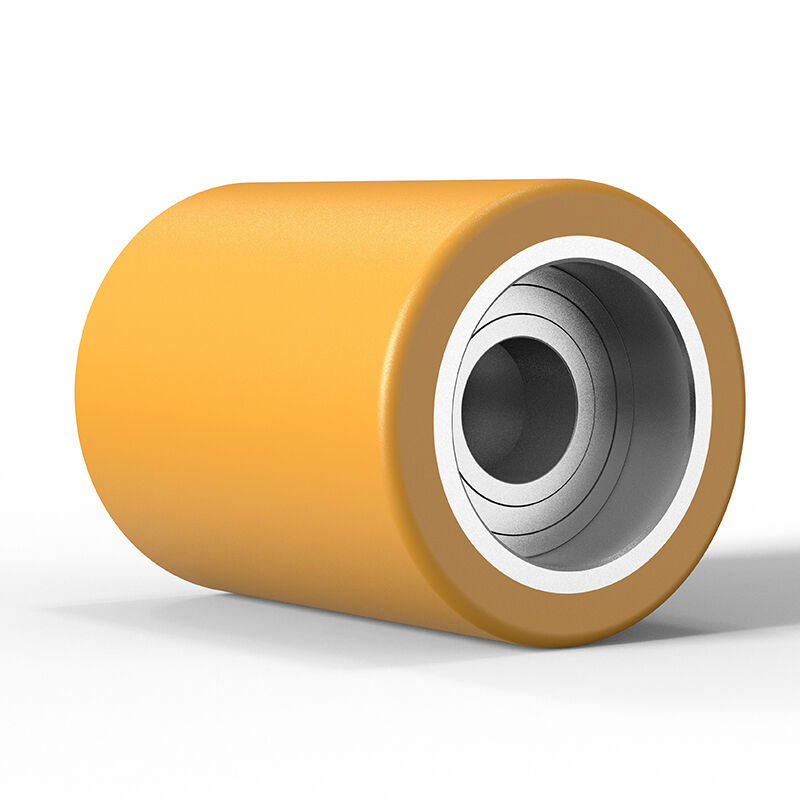

TERD Series-Polyurethane Roller

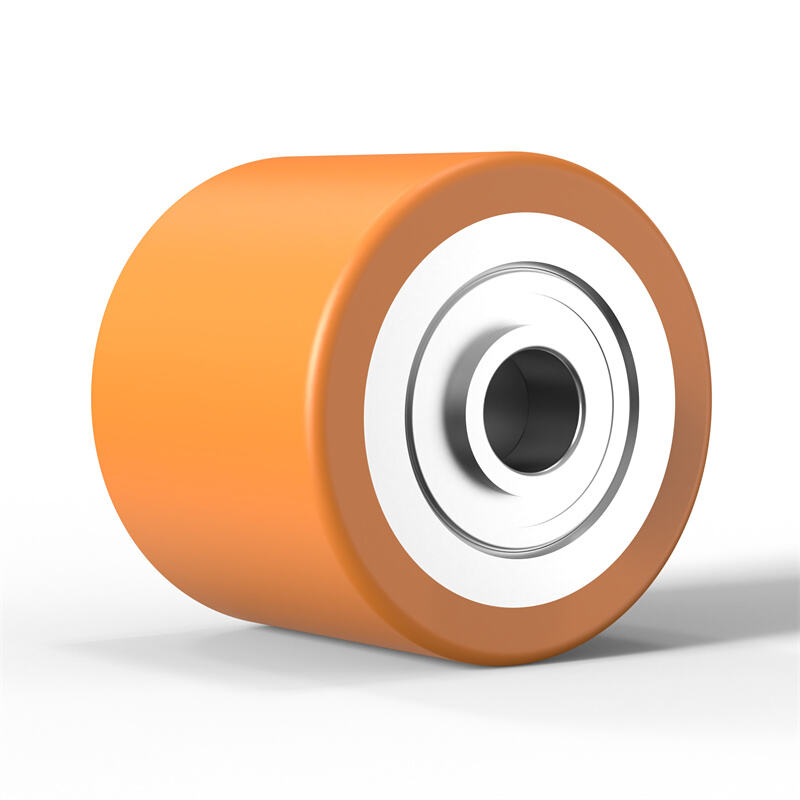

TERC Series-Polyurethane Roller

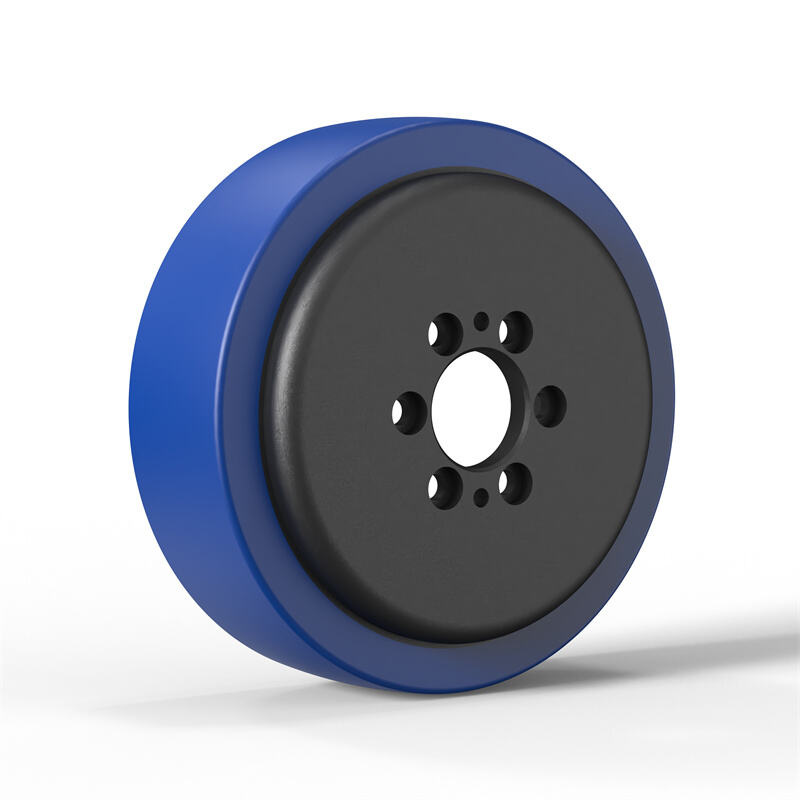

GEFK Series-Polyurethane Drive Wheel
