VEH Series-Flanged Polyurethane Drive Wheel

All Categories
POLYURETHANE DRIVEN WHEEL

POLYURETHANE DRIVEN WHEEL

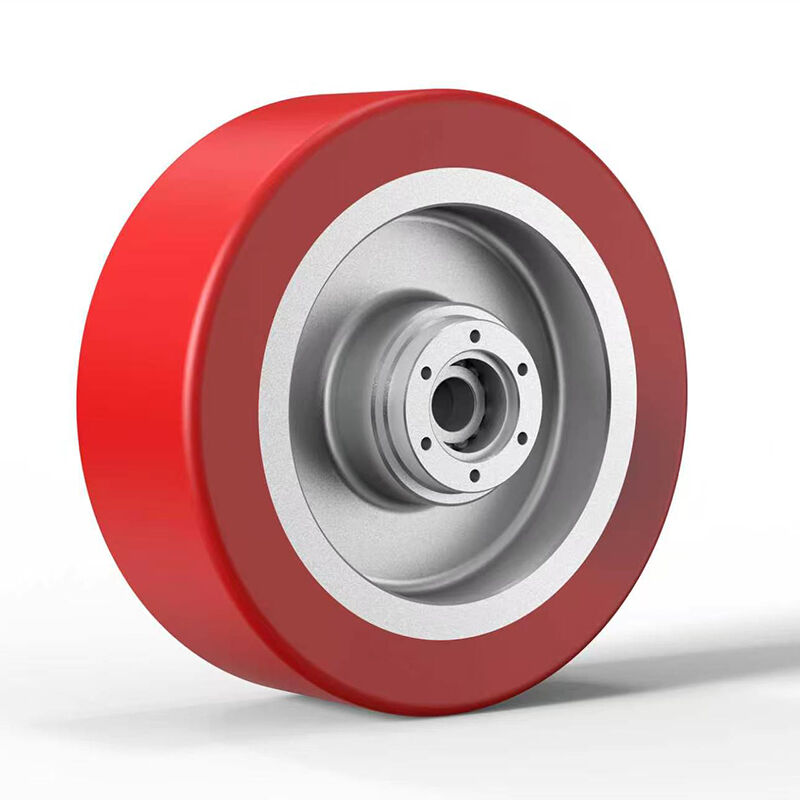

VEH Series-Flanged Polyurethane Drive Wheel

Driven wheel with Eaxflex polyurethane tread

  • Tread Encapsulation Hardness

    Tread Encapsulation Hardness

    93 Shore A

  • Protect the ground/walking noise

    Protect the ground/walking noise

    good

  • Rolling resistance

    Rolling resistance

    Very good

  • Wear resistance capacity

    Wear resistance capacity

    Outstanding

Introduction

Tread: High-quality polyurethane elastomer cast through chemical reaction, with a hardness of 93±3 Shore A. It features low walking noise, low rolling resistance, ground protection, excellent wear resistance, high cut and tear resistance, and is non-marking, non-staining, and has excellent adhesion to the wheel hub.

Wheel Hub: Available in 45# steel, cast iron, die-cast aluminum alloy, stainless steel, and other metal materials depending on the working conditions; surface treatments include painting, phosphating, galvanizing, and Dacromet coating.

Other Characteristics: Resistant to various corrosive substances; operating temperature: -30°C to +70°C, short-term up to +90°C; load capacity decreases above +40°C.

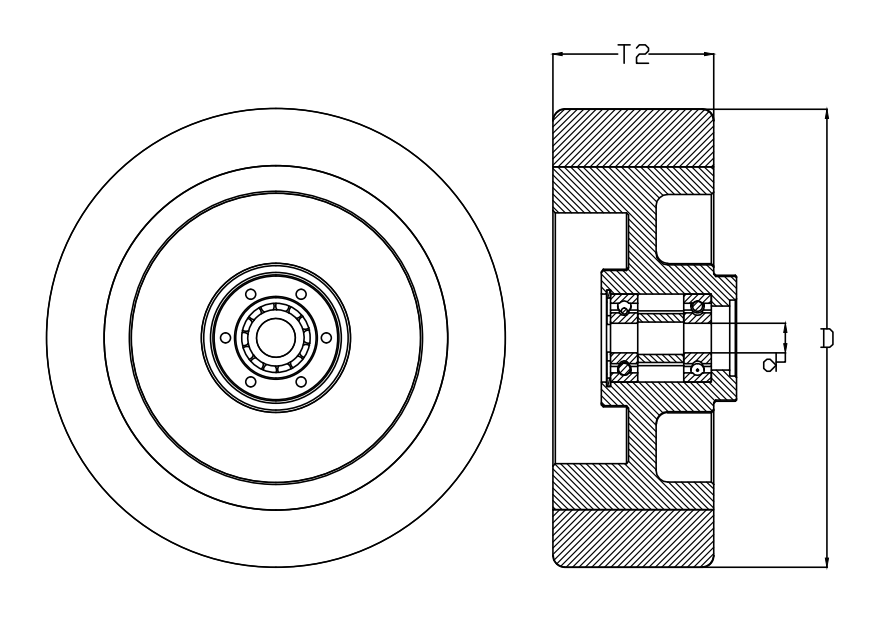

Specification

Single Wheel Wheel Diameter
(D) mm
Wheel Width
(T2) mm
Load Capacity at 4km/h
(kg)
Load Capacity at 10km/h (kg) Bearing
Type
Mounting Hole Shape Hub
Length
VEH 250*50 100 40 400 / Customization Available
VEH 250*60 125 40 450 / Customization Available
VEH 300*45 150 40 650 300 Customization Available
VEH 300*80 165 40 750 350 Customization Available
VEH 300*100 180 50 850 420 Customization Available
VEH 360*75 200 50 900 450 Customization Available
VEH 360*100 200 80 1400 700 Customization Available
VEH 400*80 250 80 1800 900 Customization Available
VEH 400*125 250 100 2200 1100 Customization Available
VEH 500*100 300 100 2700 1350 Customization Available
VEH 600*125 350 80 2200 1100 Customization Available
VEH 600*200 400 100 3400 1700 Customization Available
VEH 750*200 450 150 6500 3000 Customization Available
Please contact us for other sizes

Frequently Asked Questions?

Standard warranty is 12 months. For confirmed quality issues, we provide free replacement or full refund.

35 years in polyurethane wheel manufacturing, 52 patents, products exported to 40+ countries.

MOQ: Standard products 100 pcs. Samples: Standard products 1-3 pcs. Sample lead time: 30 days.

T/T, L/C, PayPal. New clients: 30% deposit + 70% before shipment.

On-time delivery rate: 98%+. In-stock standard products: 3-7 working days.

Choose polyurethane for heavy load and high frequency. Choose rubber for light load and cost priority.

Standard series: 50kg – 10 tons/wheel, maximum 15m/s.

Full customization available for diameter, width, hardness, color and more.

More Products

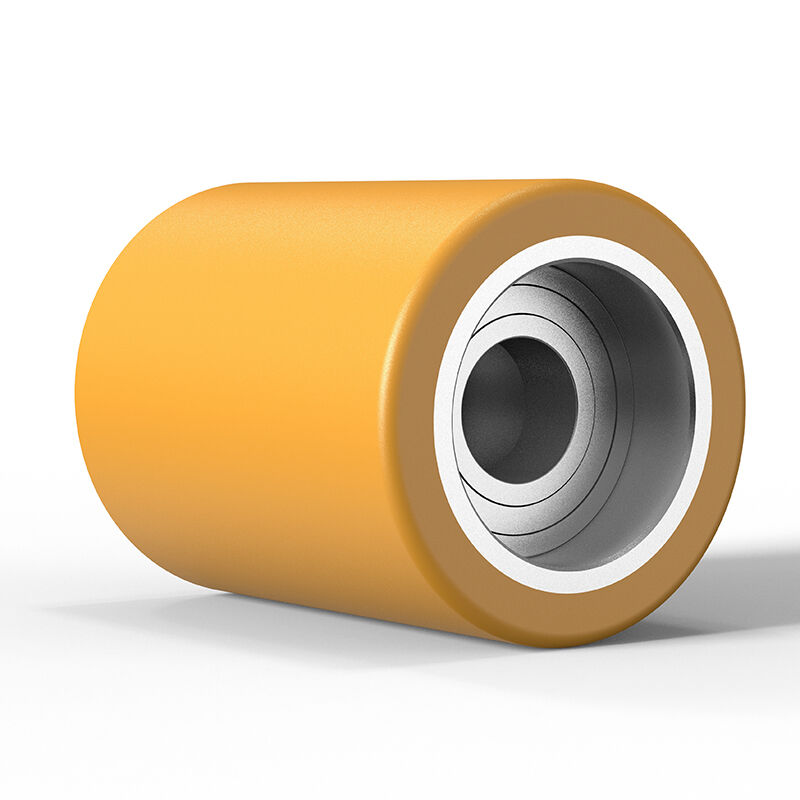

  • TERD Series-Polyurethane Roller

    TERD Series-Polyurethane Roller

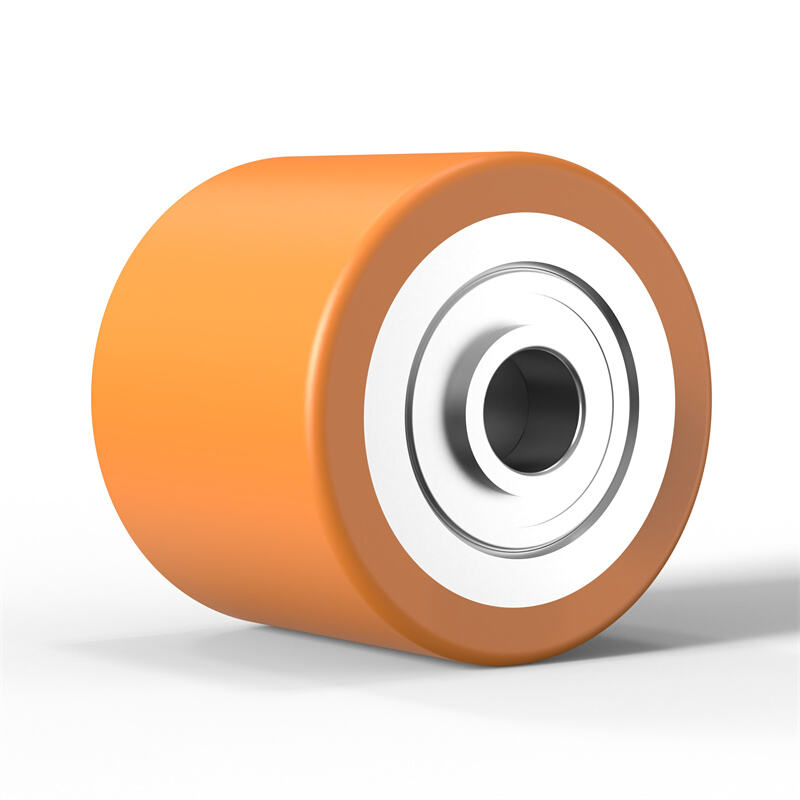

  • TERC Series-Polyurethane Roller

    TERC Series-Polyurethane Roller

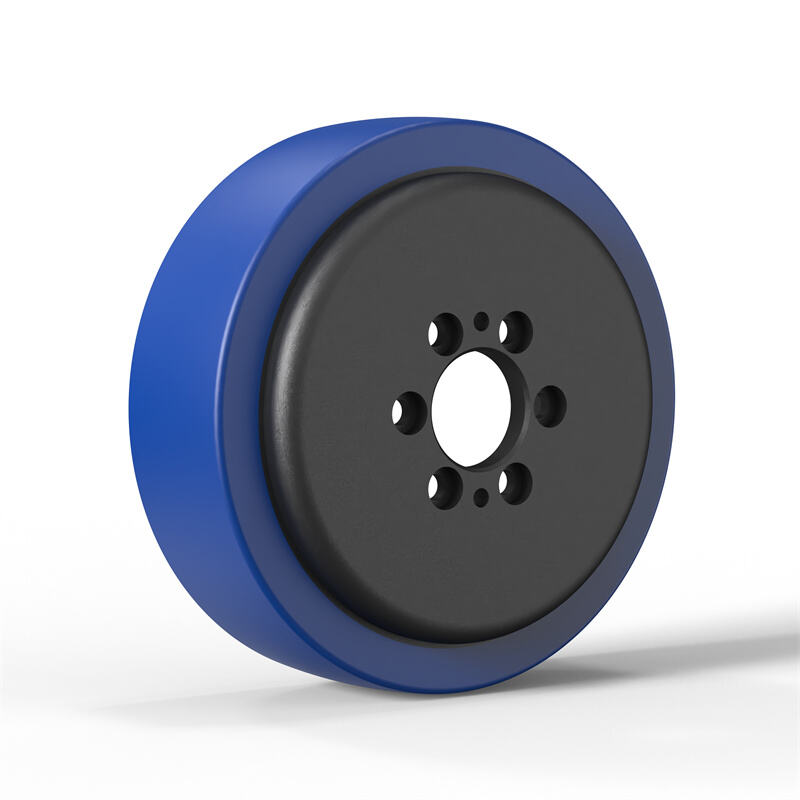

  • GEFK Series-Polyurethane Drive Wheel

    GEFK Series-Polyurethane Drive Wheel

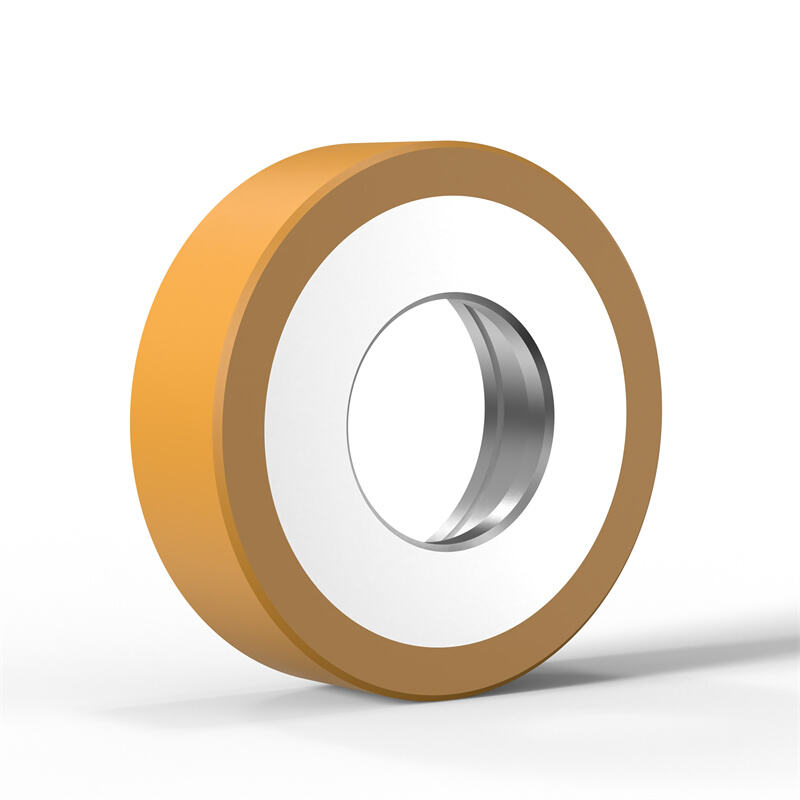

  • VSF Series-Polyurethane Driven Wheel
