GEJE Series-Polyurethane Drive Wheel（Keyway）

Drive wheels with Eaxflex polyurethane tread

Tread Encapsulation Hardness

93 Shore A
Protect the ground/walking noise

good
Rolling resistance

Very good
Wear resistance capacity

Outstanding

Introduction
Specification
Faq
More Products

Introduction

Tread: High-quality polyurethane elastomer cast through chemical reaction, with a hardness of 93±3 Shore A. It features low walking noise, low rolling resistance, ground protection, excellent wear resistance, high cut and tear resistance, and is non-marking, non-staining, and has excellent adhesion to the wheel hub.

Wheel Hub: Available in 45# steel, cast iron, die-cast aluminum alloy, stainless steel, and other metal materials depending on the working conditions; surface treatments include painting, phosphating, galvanizing, and Dacromet coating.

Other Characteristics: Resistant to various corrosive substances; operating temperature: -30°C to +70°C, short-term up to +90°C; load capacity decreases above +40°C.

Specification

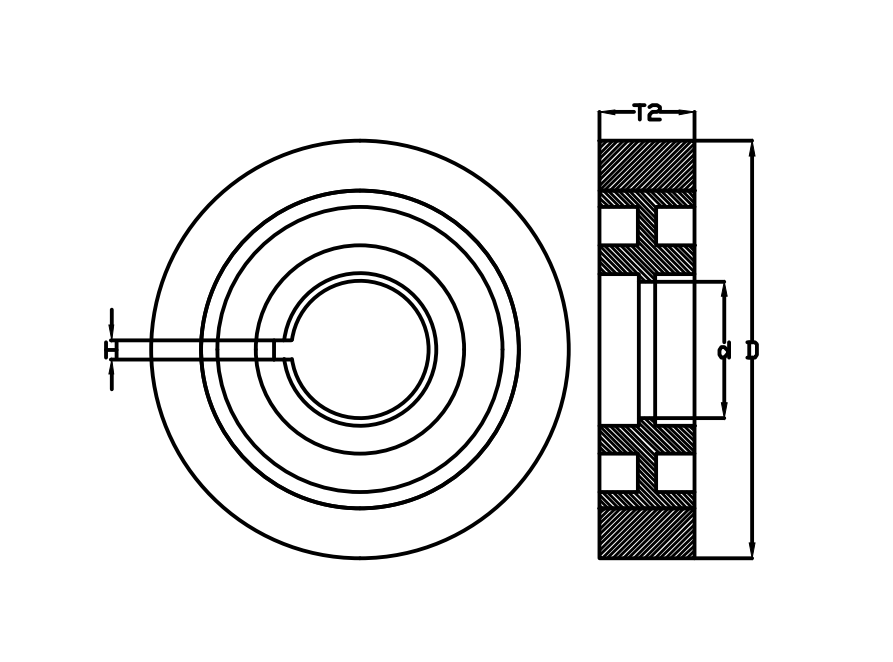

Single Wheel	Wheel Diameter （D）mm	Wheel Width （T2）mm	Load Capacity at 4km/h（kg）	Load Capacity at 10km/h（kg）	Bore Shaft Diameter	Hub Keyway Width	Bore Shaft Length
GEJE 100/40	100	40	300	/	Customizable
GEJE 125/40	125	40	350	/	Customizable
GEJE 150/50	150	50	450	180	Customizable
GEJE 180/50	180	50	650	240	Customizable
GEJE 200/50	200	50	700	300	Customizable
GEJE 250/50	250	50	850	320	Customizable
GEJE 300/60	300	60	1100	450	Customizable
Other sizes available upon inquiry
